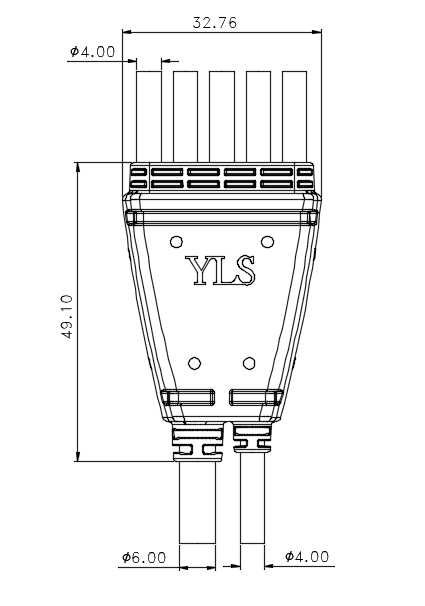

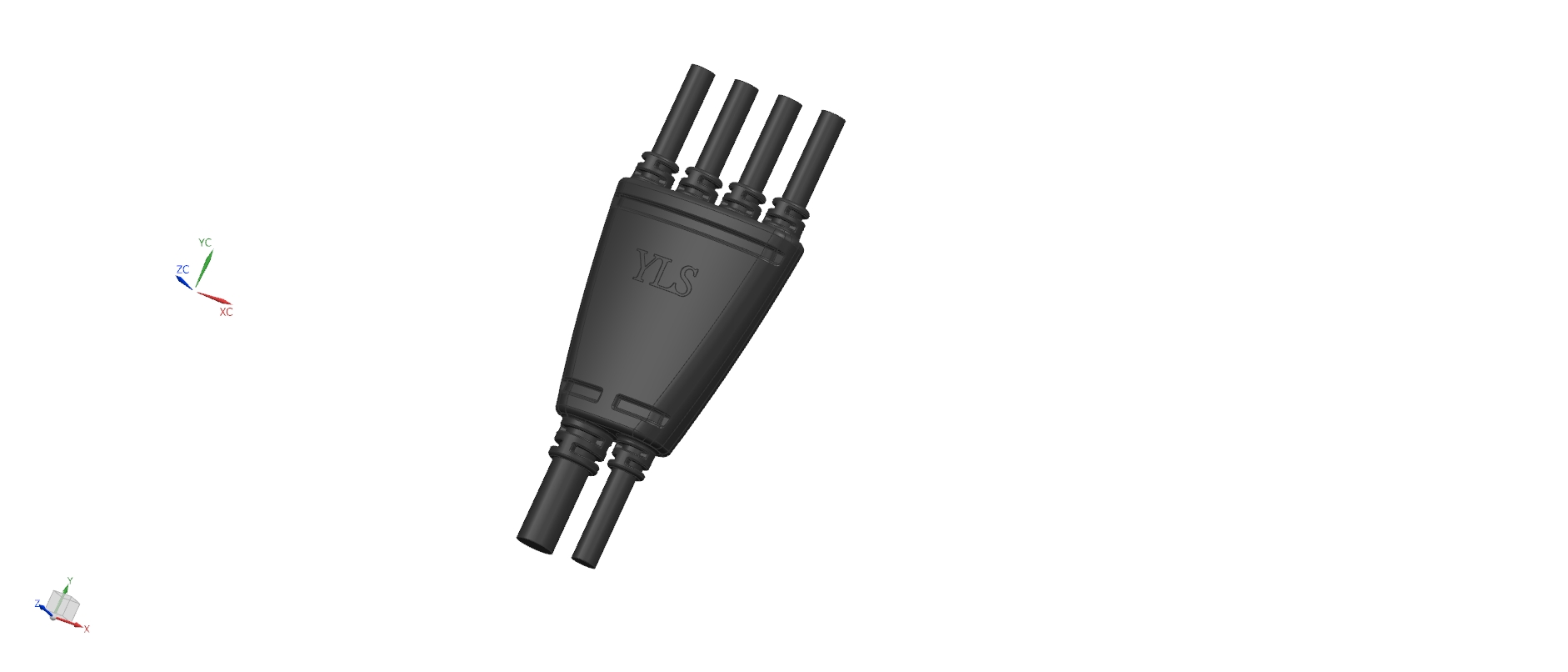

Flat splitter BW 1T4 2T4 1T5 2T5
YLS
Product parameters | Flat Splitter : BW 1T4 2T4 1T5 2T5 |
Operating Environment | -30℃-+85℃ |
Rated Voltage | 500V AC |
Rated Current | 2A |
Contact Resistance | ≤10mΩ |
Insulation Resistance | ≥10mΩ(Under ordinary or in bumin environment) |
Withstand Voltage | AC 500V 50HZ |
Level of Protection | IPX6 |
Specification of used wire | 0.2mm |
Use | Integration module |
Product parameters | Flat Splitter : BW 1T4 2T4 1T5 2T5 |
Operating Environment | -30℃-+85℃ |
Rated Voltage | 500V AC |
Rated Current | 2A |
Contact Resistance | ≤10mΩ |
Insulation Resistance | ≥10mΩ(Under ordinary or in bumin environment) |
Withstand Voltage | AC 500V 50HZ |
Level of Protection | IPX6 |
Specification of used wire | 0.2mm |
Use | Integration module |
