YLS-F-Z812AT
YLS

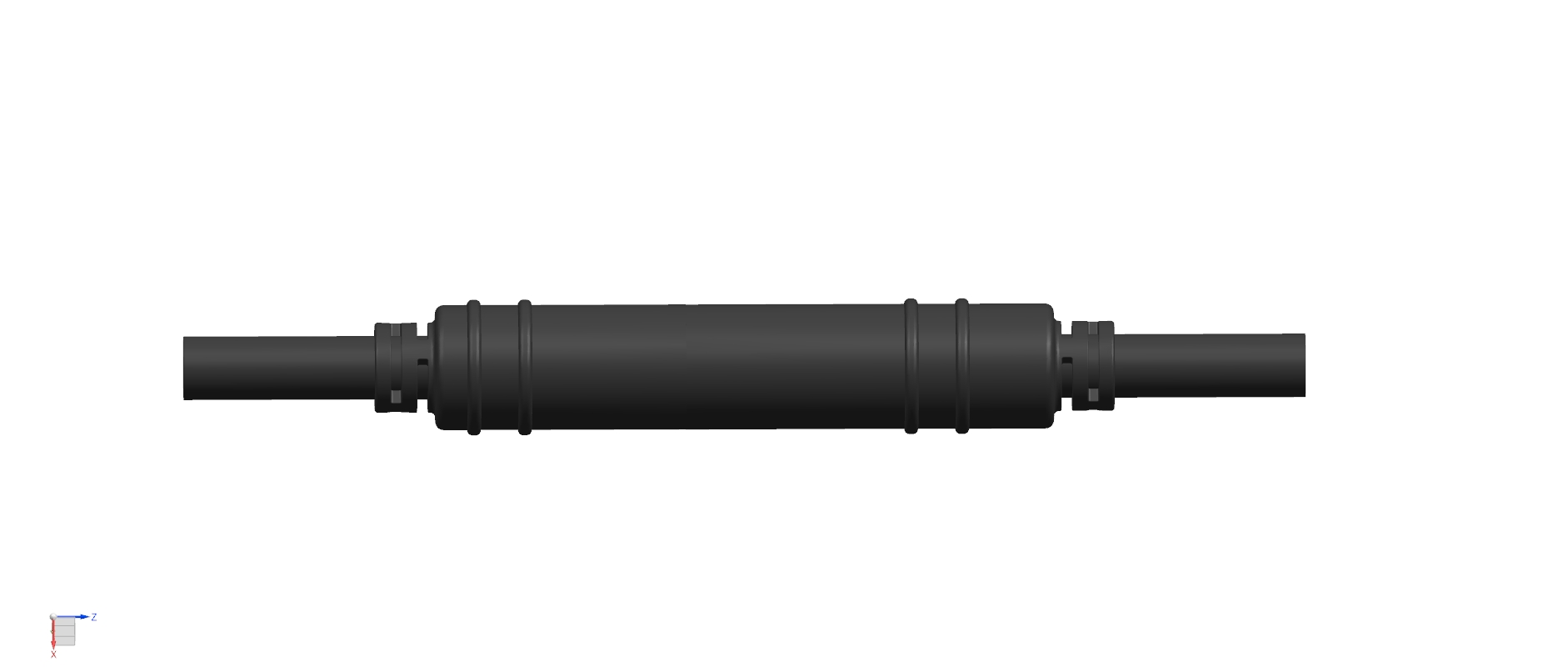

Product parameters | Signal Cable : YLS-F-Z812AT |
Operating Environment | -30℃-+85℃ |
Rated Voltage | 500V AC |
Rated Current | 2A-3A |
Contact Resistance | ≤10mΩ |
Insulation Resistance | ≥10mΩ(Under ordinary or in bumin environment) |
Withstand Voltage | AC 500V 50HZ |
Contact Material | Gold-plated copper alloy |
Level of Protection | IPX6 |
Mechanical life | 5000 times |
Specification of used wire | 0.2mm |
Use | Singal lines |
Product parameters | Signal Cable : YLS-F-Z812AT |
Operating Environment | -30℃-+85℃ |
Rated Voltage | 500V AC |
Rated Current | 2A-3A |
Contact Resistance | ≤10mΩ |
Insulation Resistance | ≥10mΩ(Under ordinary or in bumin environment) |
Withstand Voltage | AC 500V 50HZ |
Contact Material | Gold-plated copper alloy |
Level of Protection | IPX6 |
Mechanical life | 5000 times |
Specification of used wire | 0.2mm |
Use | Singal lines |
