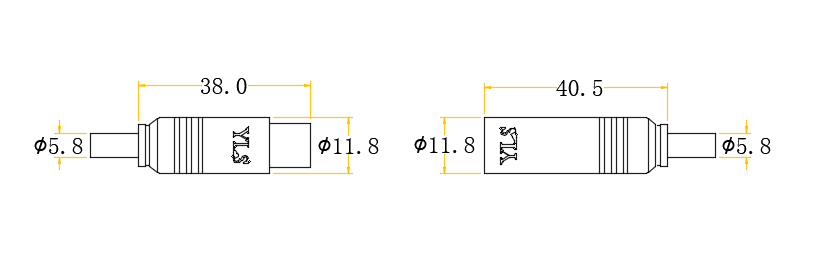

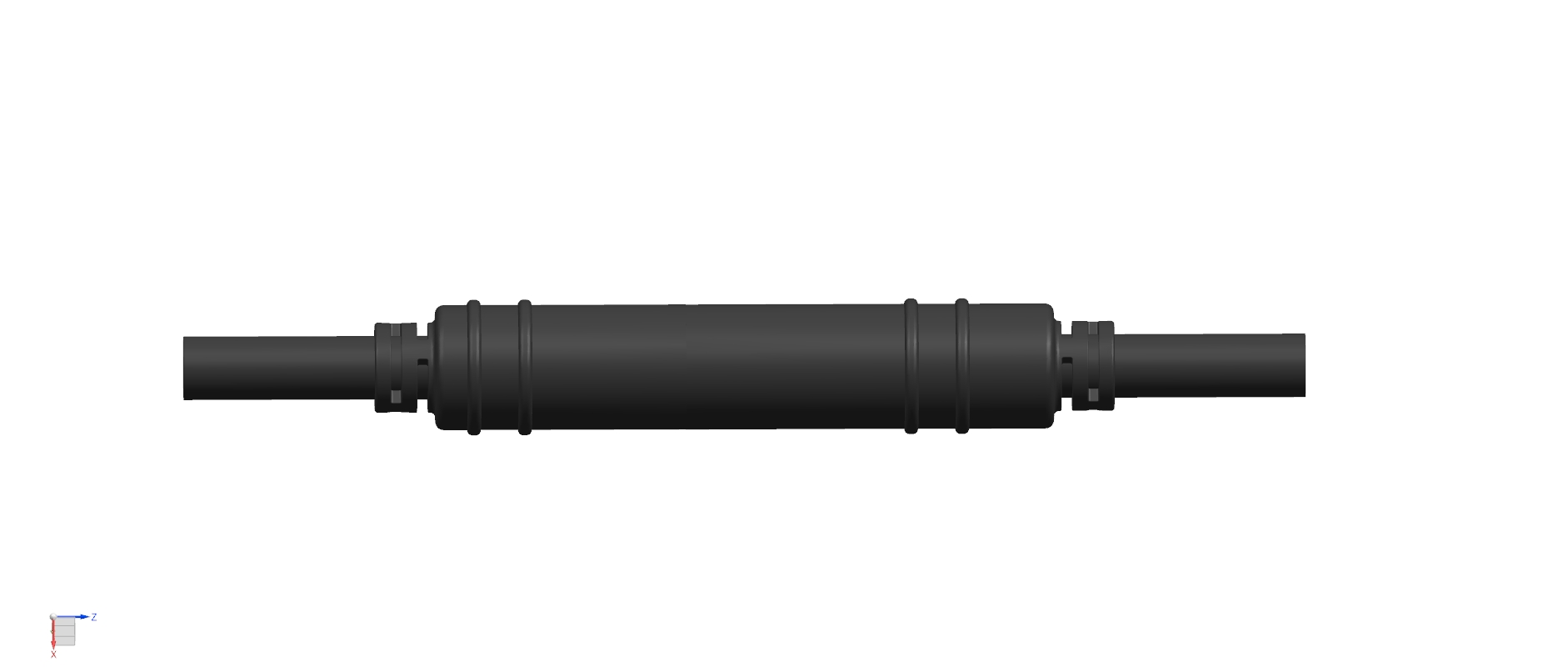

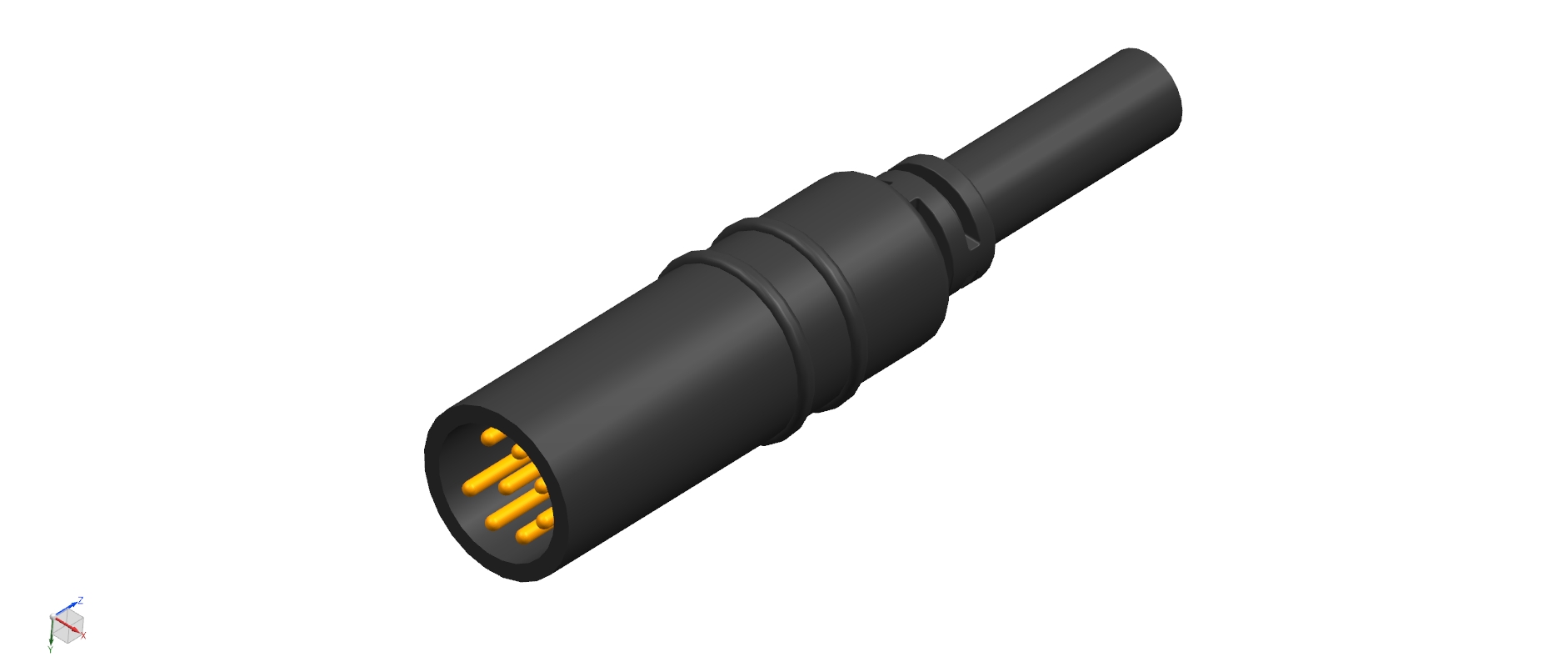

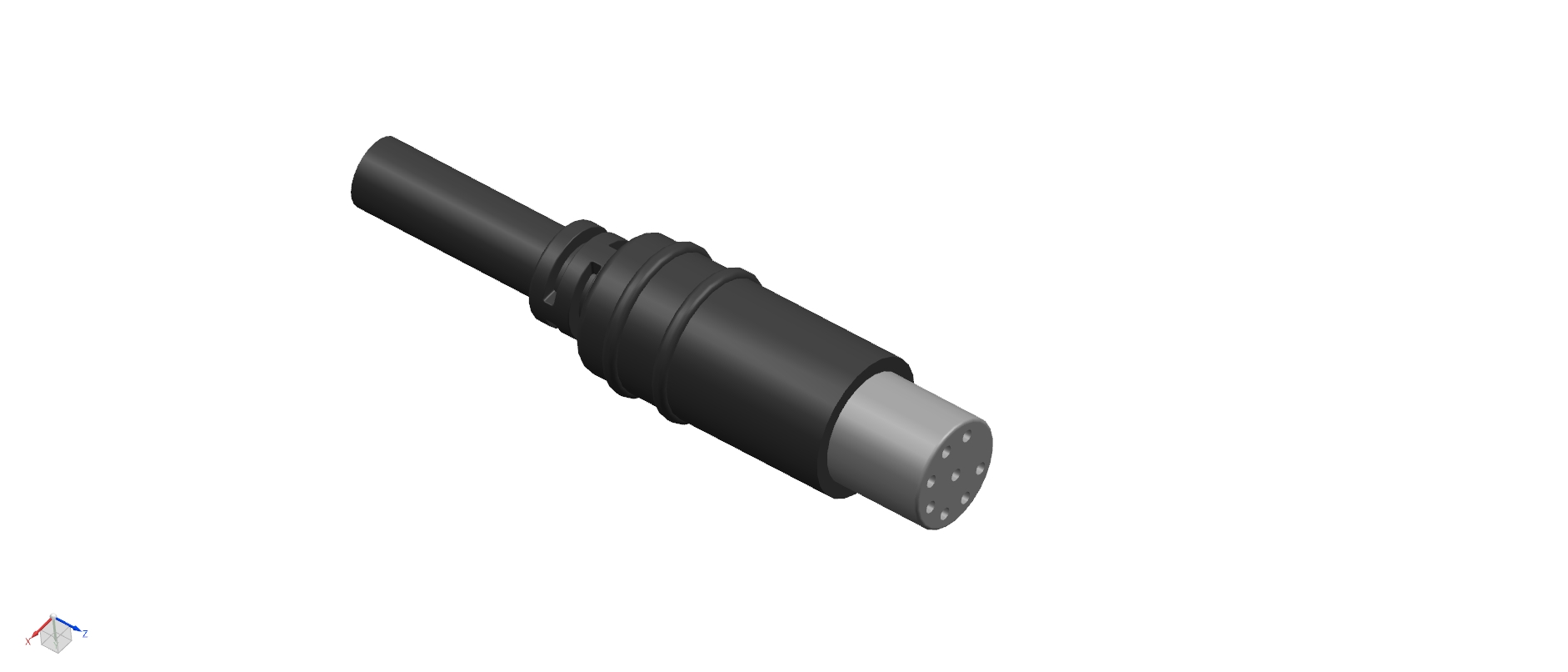

YLS-F-Z812AT
YLS
YLS-F-Z812AT | |
-30oC-+85oC | |
Rated Voltage | 300V AC |
Rated Current | 2A |
Contact Resistance | ≤10 mΩ |
Insulation Resistance | ≥10 mΩ(under ordinary or in bumin environment) |
Withstand Voltage | AC 300V 50Hᶻ |
Material Of Contact | Gold-plated copper alloy |
Protection Degree | IP 66 |
Mechanical Life | 500times |
Specification of used wire | 0.2mm-0.3mm |
Use | The Signal Cable |
YLS-F-Z812AT | |
-30oC-+85oC | |
Rated Voltage | 300V AC |
Rated Current | 2A |
Contact Resistance | ≤10 mΩ |
Insulation Resistance | ≥10 mΩ(under ordinary or in bumin environment) |
Withstand Voltage | AC 300V 50Hᶻ |
Material Of Contact | Gold-plated copper alloy |
Protection Degree | IP 66 |
Mechanical Life | 500times |
Specification of used wire | 0.2mm-0.3mm |
Use | The Signal Cable |
