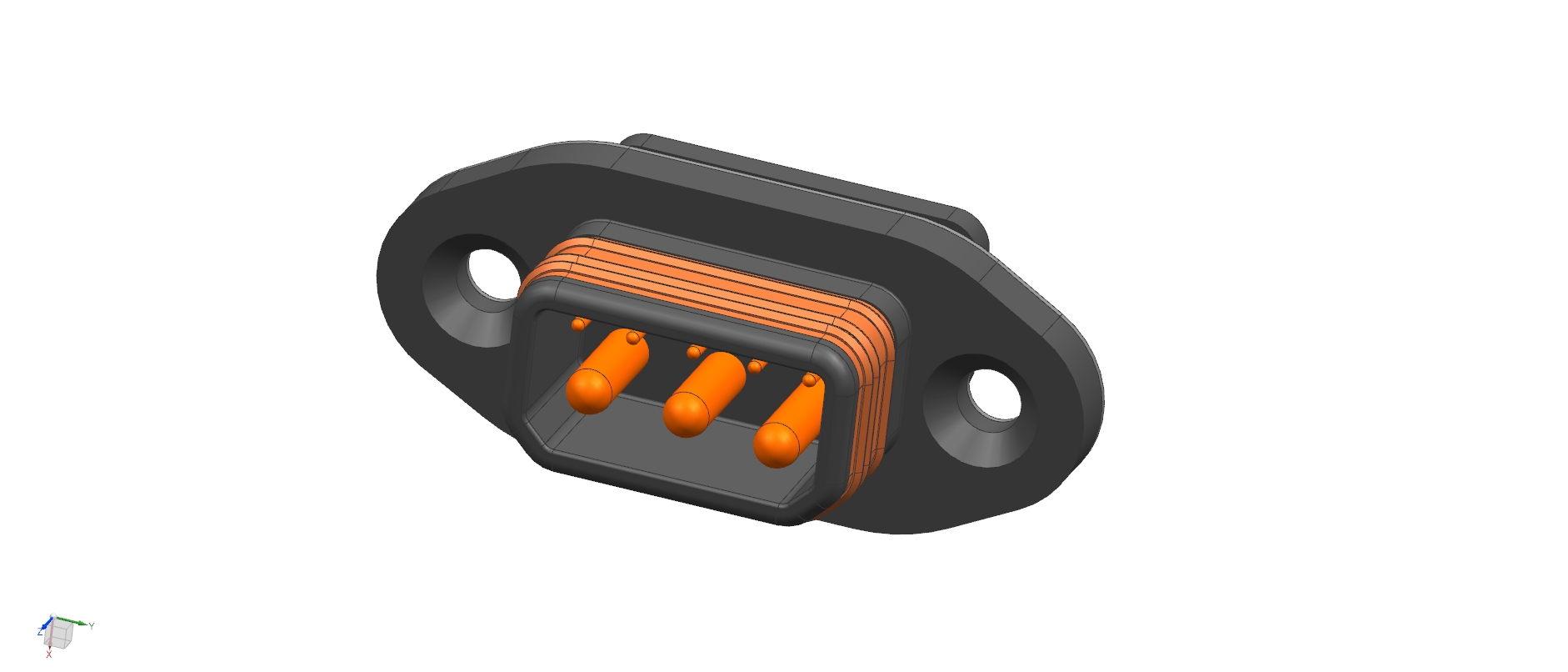

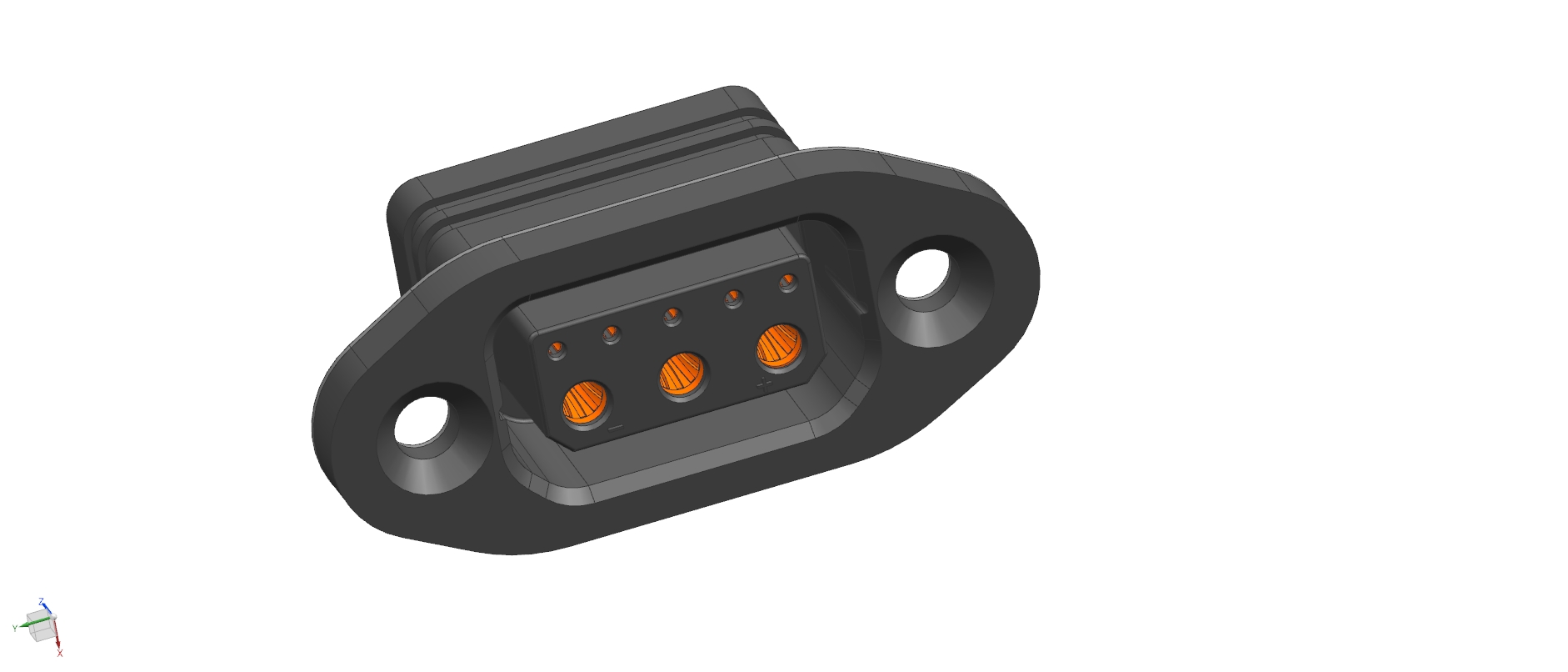

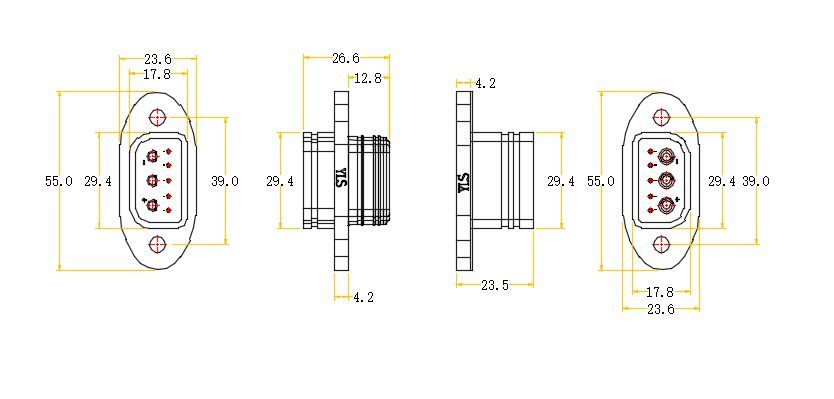

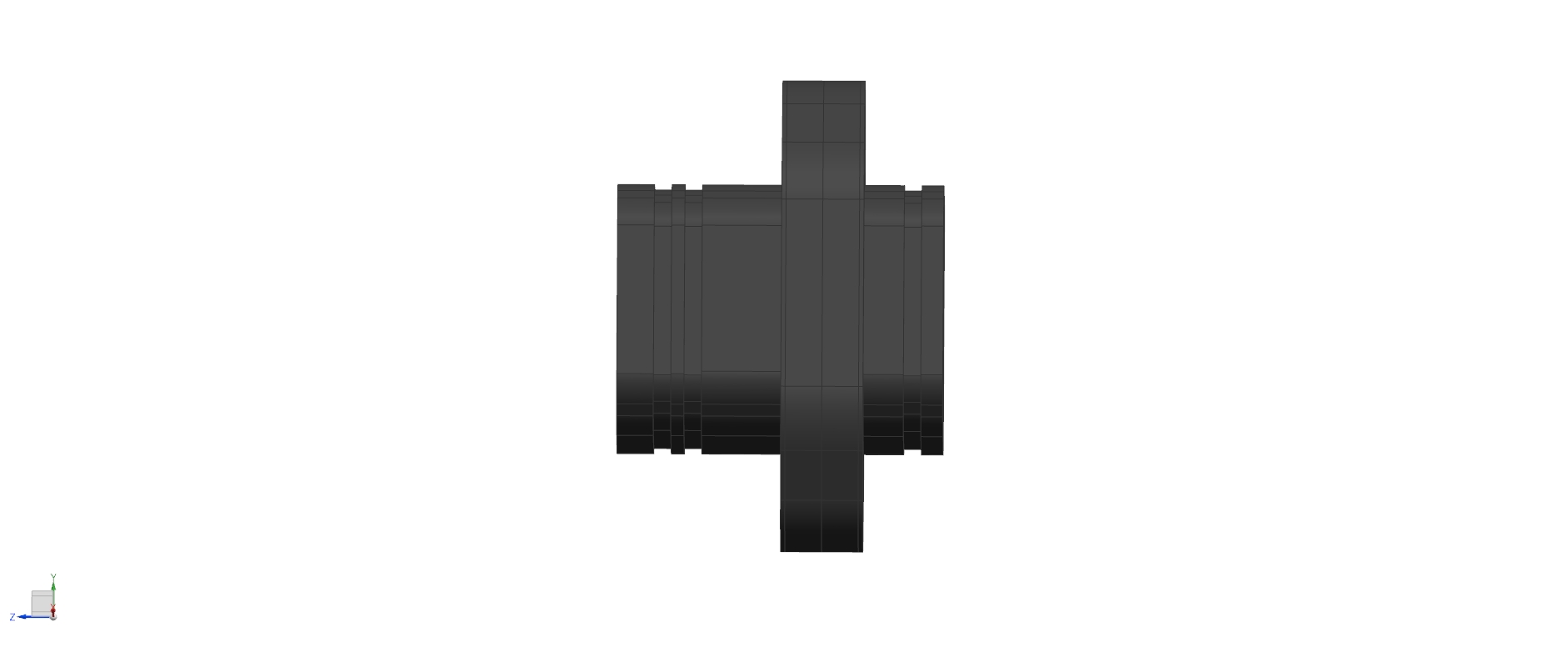

YLS-F-Z3+5AT
YLS
YLS-F-Z3+5AT | |
-40oC-+85oC | |
Rated Voltage | 500V AC |
Rated Current | 1-3 30A 4-8 3A |
Contact Resistance | ≤10 mΩ |
Insulation Resistance | ≥10 mΩ(under ordinary or in bumin environment) |
Withstand Voltage | AC 300V 50Hᶻ |
Material Of Contact | Gold-plated copper alloy |
Protection Degree | IP 67 |
Mechanical Life | 1000times |
Specification of used wire | 0.2mm-3.0mm |
Use | Charging and discharging integrated |
YLS-F-Z3+5AT | |
-40oC-+85oC | |
Rated Voltage | 500V AC |
Rated Current | 1-3 30A 4-8 3A |
Contact Resistance | ≤10 mΩ |
Insulation Resistance | ≥10 mΩ(under ordinary or in bumin environment) |
Withstand Voltage | AC 300V 50Hᶻ |
Material Of Contact | Gold-plated copper alloy |
Protection Degree | IP 67 |
Mechanical Life | 1000times |
Specification of used wire | 0.2mm-3.0mm |
Use | Charging and discharging integrated |
