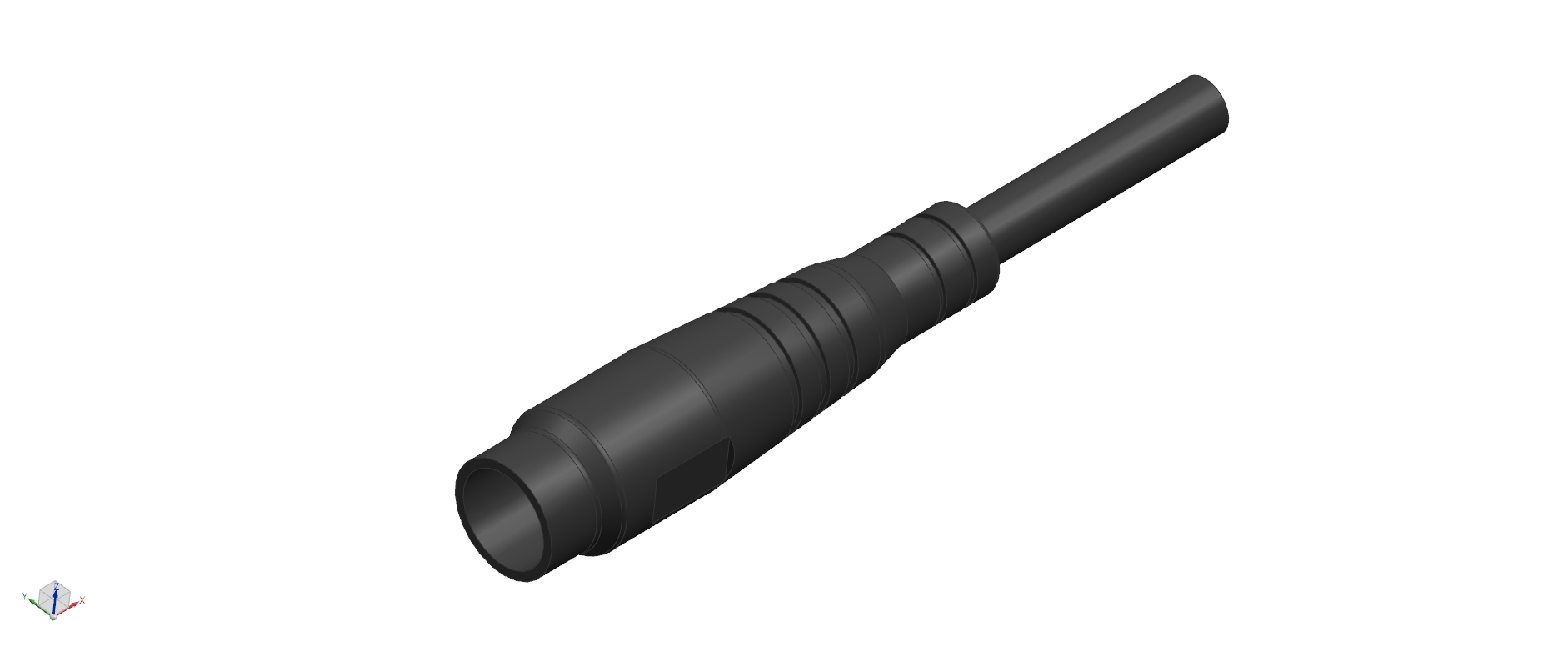

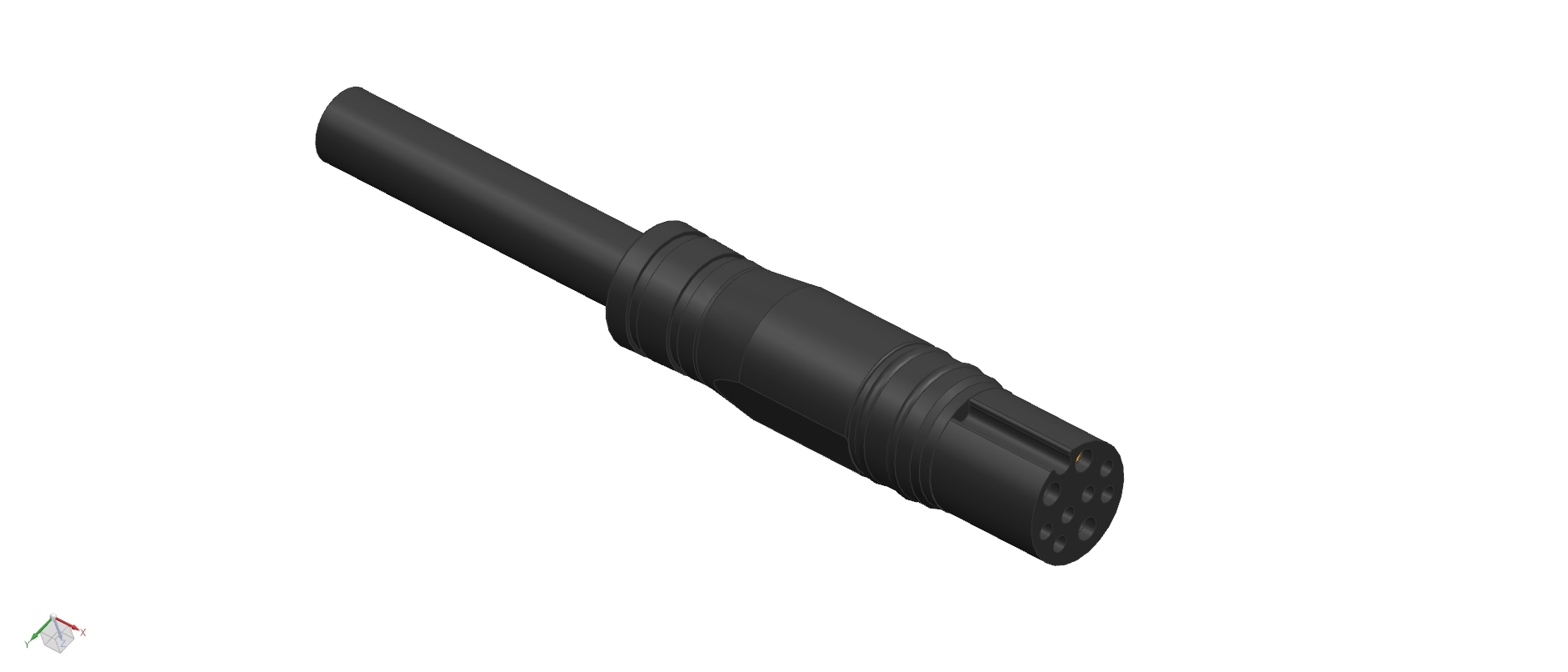

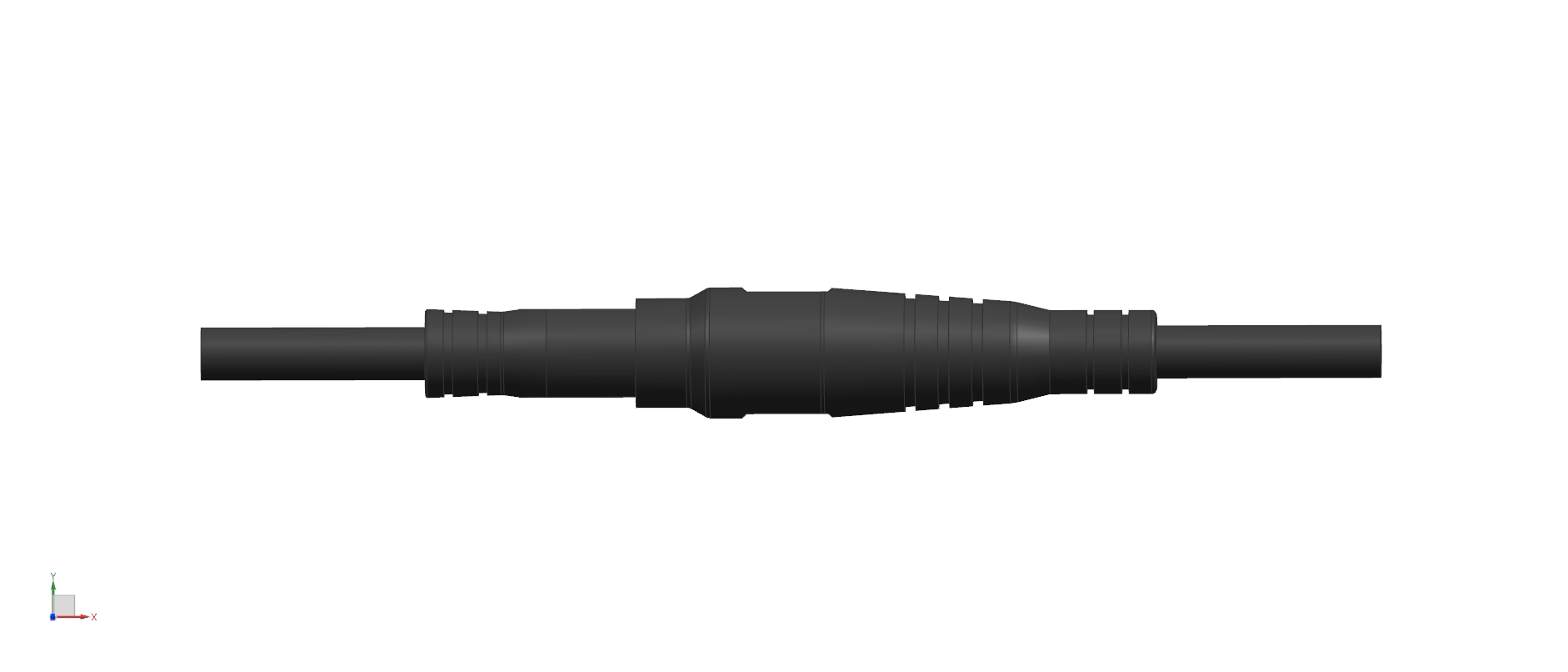

YLS-F-Z1410AT
YLS
Product parameters | Signal Cable : YLS-F-Z1410AT |
Operating Environment | -30℃-+85℃ |
Rated Voltage | 500V AC |
Rated Current | 15A |
Contact Resistance | ≤10mΩ |
Insulation Resistance | ≥10mΩ(Under ordinary or in bumin environment) |
Withstand Voltage | AC 1000V 50HZ |
Contact Material | Gold-plated copper alloy |
Level of Protection | IPX6 |
Mechanical life | 5000 times |
Specification of used wire | 1.5mm |
Use | Motor lines |
