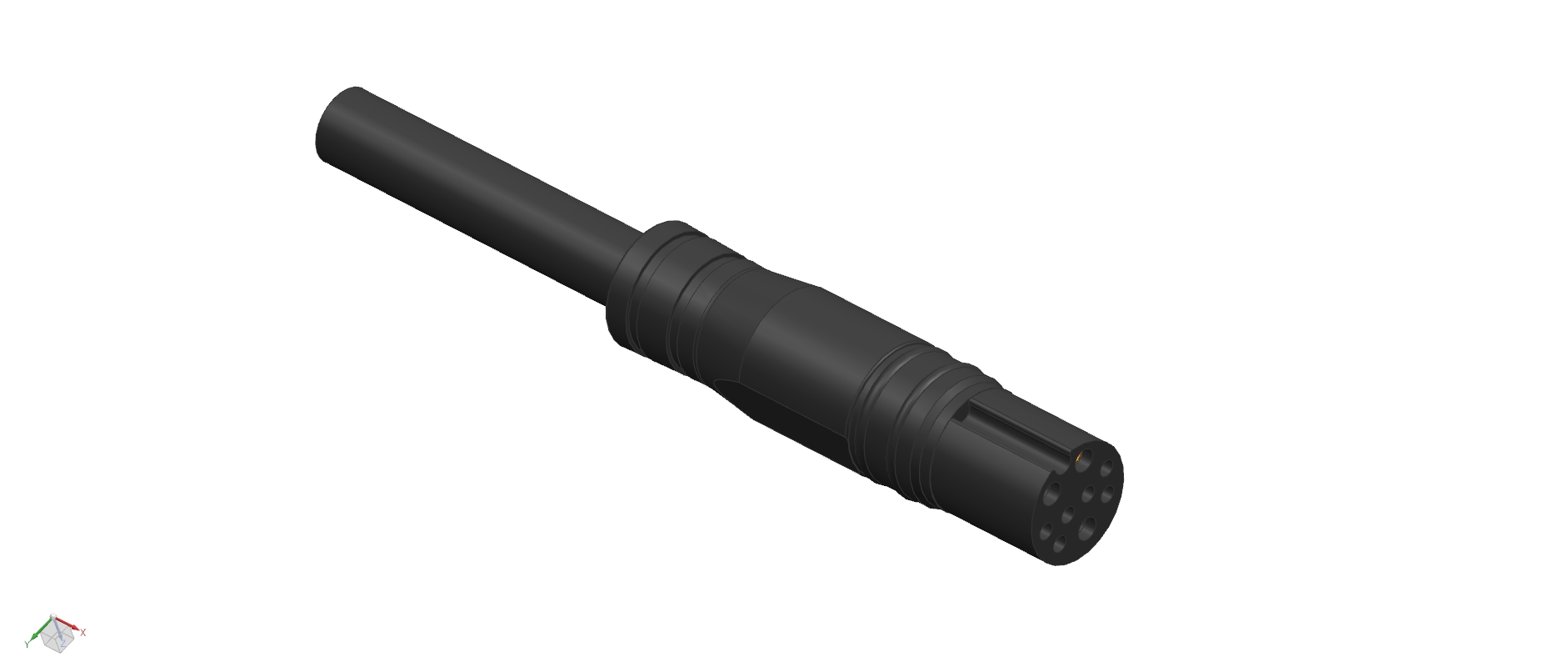

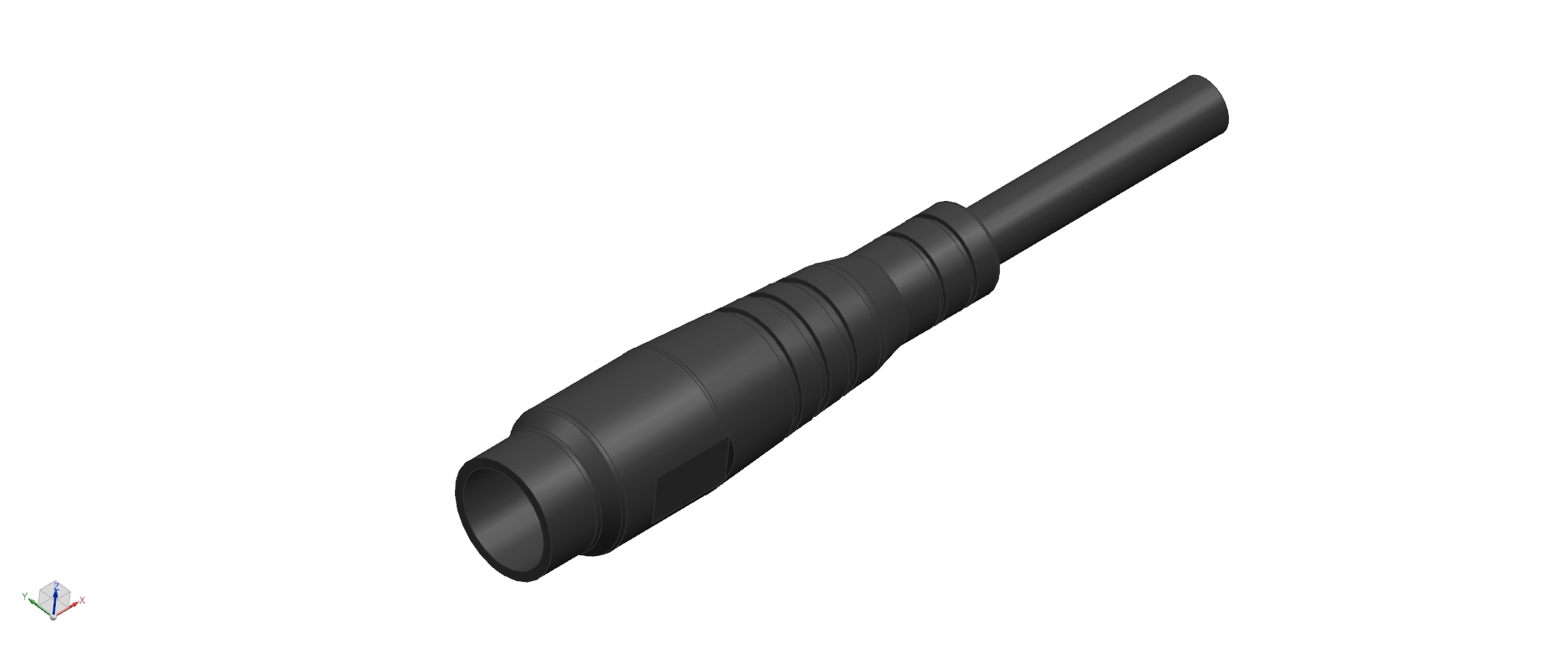

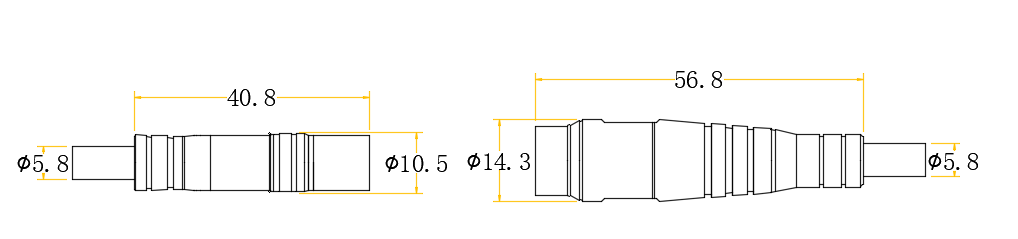

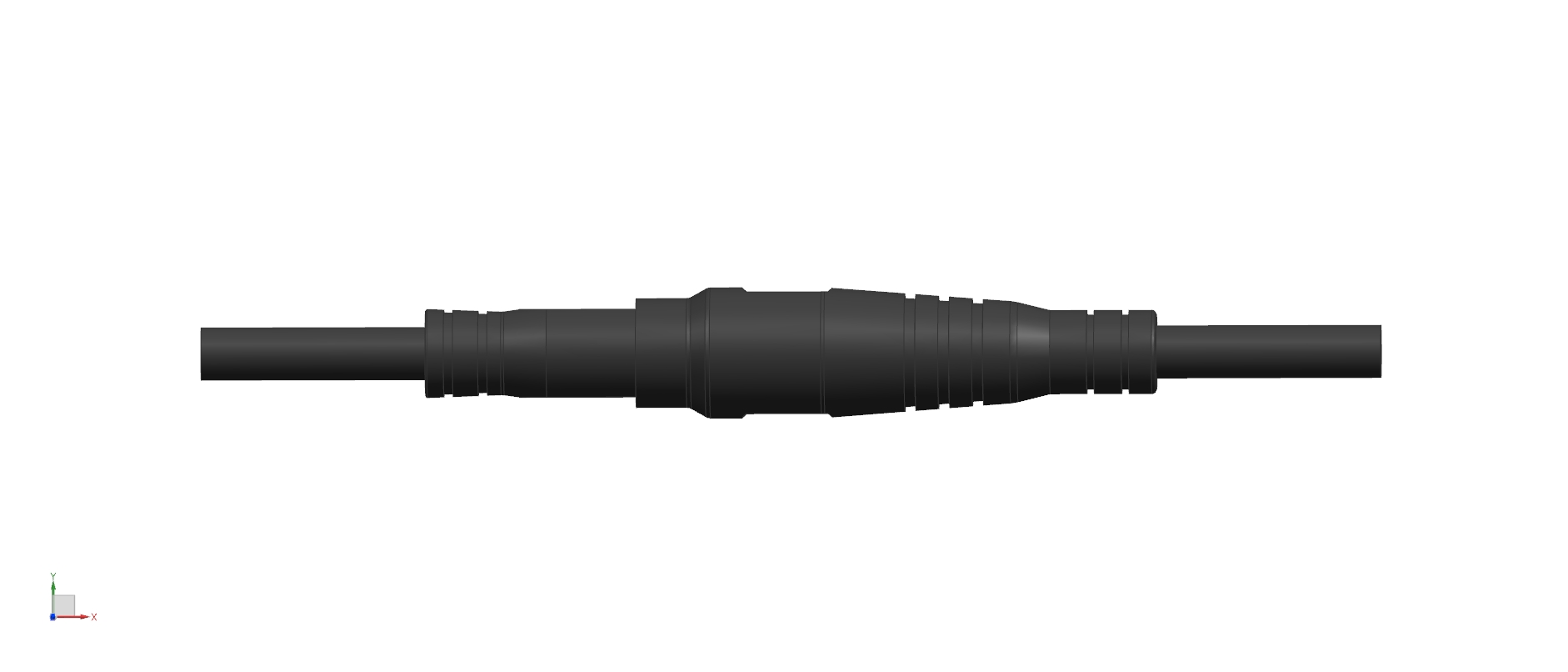

YLS-F-Z1410AT
YLS
YLS-F-Z1410AT | |
-30oC-+85oC | |
Rated Voltage | 500V AC |
Rated Current | 1-3 15A 4-10 2A |
Contact Resistance | ≤10 mΩ |
Insulation Resistance | ≥10 mΩ(under ordinary or in bumin environment) |
Withstand Voltage | AC 1000V 50Hᶻ |
Material Of Contact | Gold-plated copper alloy |
Protection Degree | IP 66 |
Mechanical Life | 1000times |
Specification of used wire | 0.2mm-1.5mm |
Use | The Motor Cable |
YLS-F-Z1410AT | |
-30oC-+85oC | |
Rated Voltage | 500V AC |
Rated Current | 1-3 15A 4-10 2A |
Contact Resistance | ≤10 mΩ |
Insulation Resistance | ≥10 mΩ(under ordinary or in bumin environment) |
Withstand Voltage | AC 1000V 50Hᶻ |
Material Of Contact | Gold-plated copper alloy |
Protection Degree | IP 66 |
Mechanical Life | 1000times |
Specification of used wire | 0.2mm-1.5mm |
Use | The Motor Cable |
